User Computer Setup Guide

This subpage contains additional descriptions and manuals about Panther's User Computers included in Panther options.

Mounting the User Computer

info

Perform this step only if you purchased the Panther UGV without a User Computer and want to connect your own. If you bought the Panther with the User Computer included, it is already mounted and ready to use.

The User Computer is mounted in a dedicated place on the Shelf inside Panther user compartment.

The instructions below will guide you on how to mount and set it up within your robot.

1. Turn off Panther.

2. Open the Cover following the instruction, then you can access the inside of the User Space.

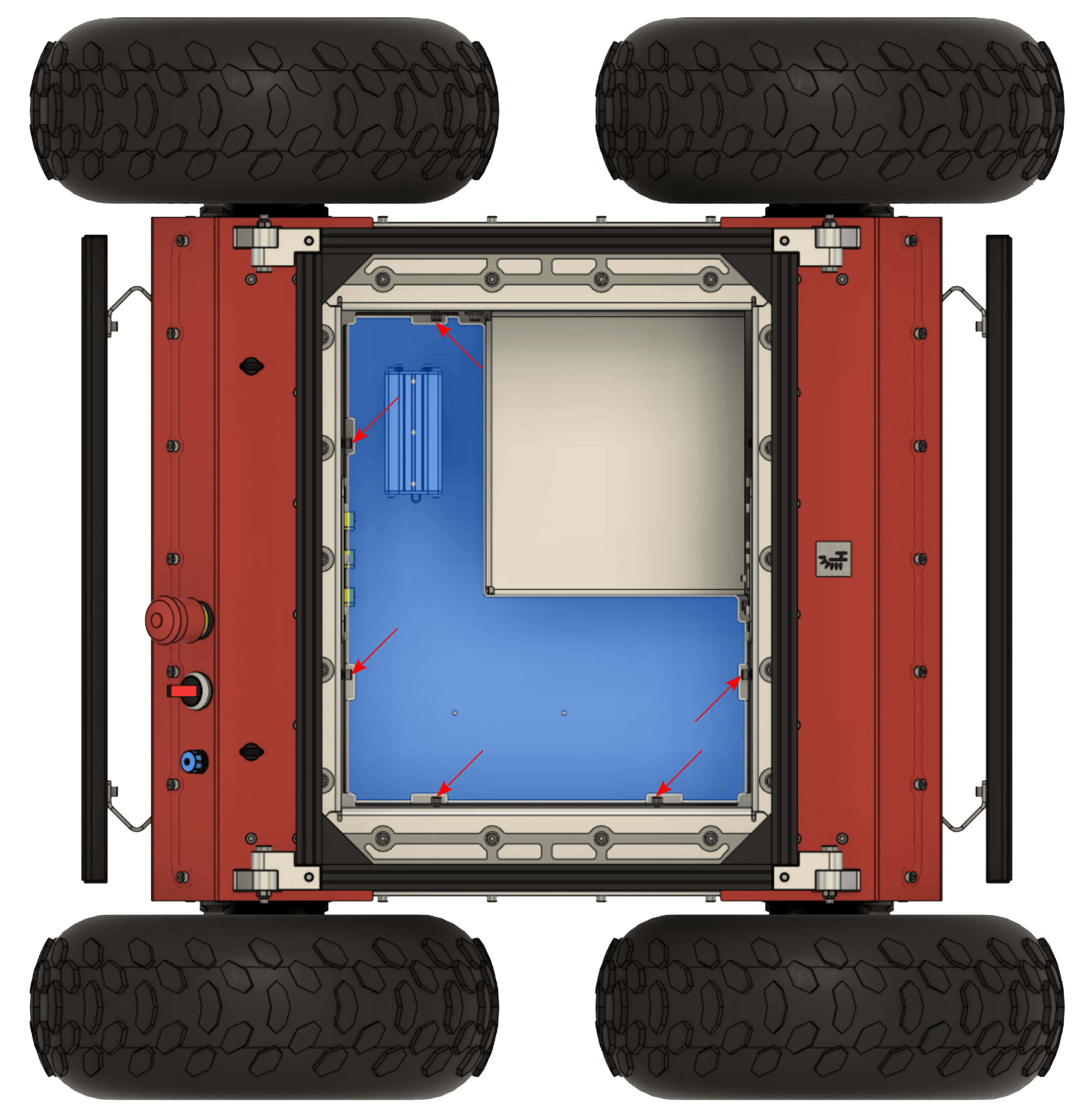

3. To remove the User Shelf loosen 6 x DIN 912 M5x12 screws and disconnect cables connected between the router and Panther.

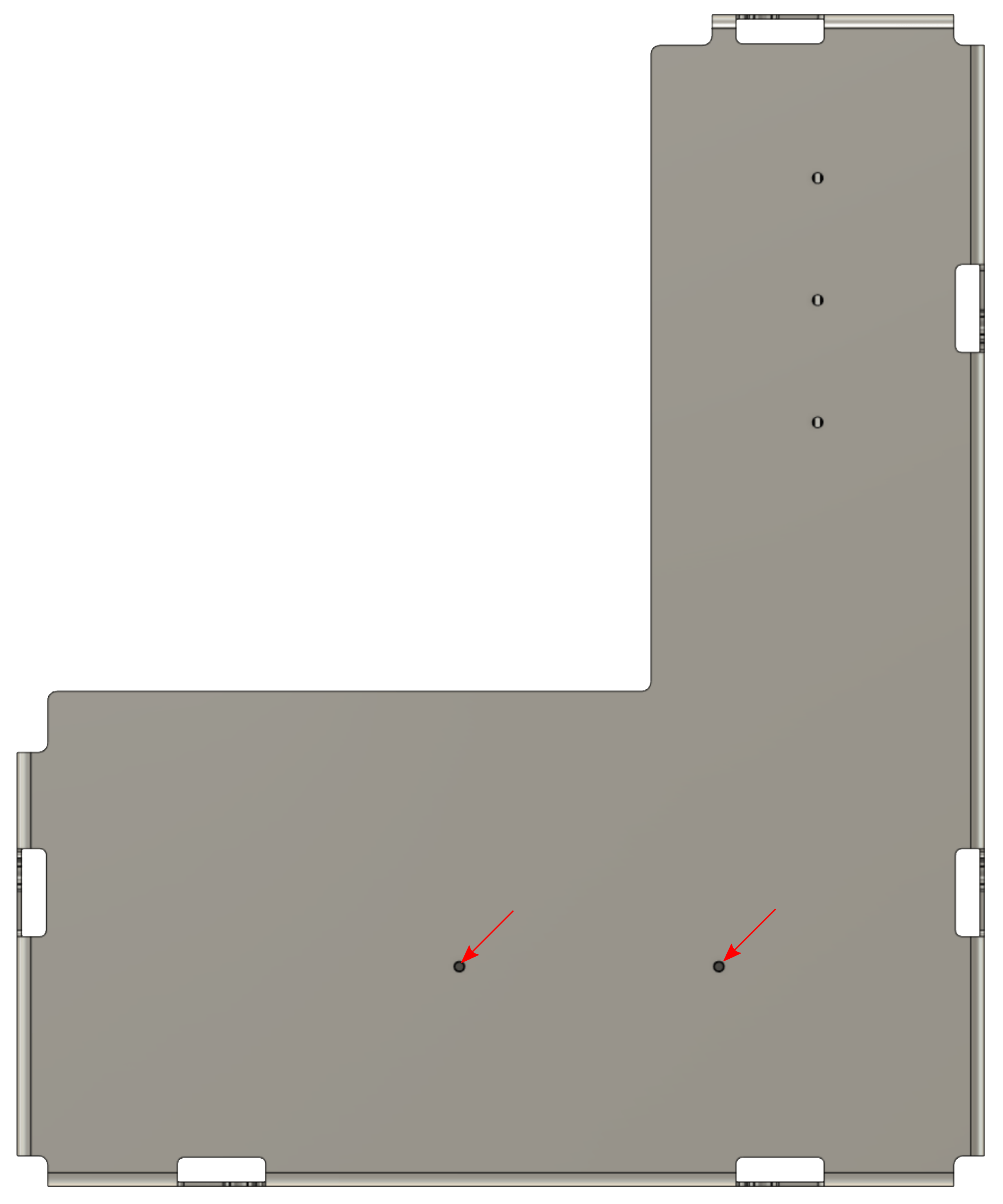

4. Mount the computer using supplied screws (M3x8) to User Shelf.



5. Place the User Shelf in Panther and tighten 6 x DIN 912 M5x12 screws.



6. Before set up make sure you have read User Power Panel documentation. Connect your Custom User Computer to the user power panel. You can use 5V, 12V or 19V.

7. Plug the supplied Ethernet cable into the User Computer and Teltonika RUTX11 router.

8. Close the Cover following instruction.

Network setup

By default the network mask is 255.255.255.0 and the devices' IPs begin with 10.15.20.XX. The default static IPs are:

• RUTX11 10.15.20.1 - an internal router with an access point and a DHCP server,
• Built-in Computer 10.15.20.2 - a SBC with Panther's driver,
• Additional: User Computer 10.15.20.3 - look at Computer (PC),
• Additional: a manipulator 10.15.20.4 - look at Manipulators (MAN).

Applying DHCP Static Lease

1. Access to Router WebUI using this instruction.

2. Make sure that Mode advanced is enabled. Check it in the top right corner. If Mode Basic is shown, click on it to change it.



3. Go to Network --> Interfaces and click edit on Lan Network.



4. Edit Static lease named nuc. Next, type in the MAC address (supplied during purchase) and click Save and apply. If you do not know the MAC address, you can find it under Status --> Network --> LAN page. By default, the User Computer inside Panther has IP 10.15.20.3, but it can be changed to any value in the range between 10.15.20.3 to 10.15.20.254.

5. You can access the User Computer through its new IP (default: 10.15.20.3). If it is not available, turn off and back on Panther.

Enable Internet connection in the RUX11

There are 2 ways to enable Internet connection of the Built-in Computer and of the User Computer. You can connect RUTX11 to existing Wi-Fi network which has access to the Internet or you can use a SIM card with LTE.

Connect the RUTX11 to another Wi-Fi

Connect the RUTX11 to another Wi-Fi network using the Configuration examples > Client Mode section from the producer's instruction.

Use LTE to get access to the Internet

Inset a SIM card to the RUTX11 following the producer's instruction and then active LTE following the producer's instruction.

Configure time synchronization with the Built-in Computer

The built-in computer uses Chrony to establish an NTP server. For optimal performance, the user's computer should be configured as an NTP client.

1. Check if Chrony is installed:

   user@any:~$

   chronyd --version

2. If Chrony is not installed, install it with the following command:

   user@any:~$

   sudo apt install chrony

3. Edit the configuration file:

   user@any:~$

   sudo nano /etc/chrony/chrony.conf

   Add the following line:

   server 10.15.20.2 iburst prefer

   Save the changes (ctrl+s) and exit the file (ctrl+x).

4. Restart chrony:

   user@any:~$

   sudo systemctl restart chrony.service

5. Check if the synchronization was successful (it may take a moment before Chrony to restart):

   user@any:~$

   chronyc tracking

   The Reference ID field should contain the IP address of the Built-in Computer (10.15.20.2) or have rpi in the name. Example output:

   Reference ID    : 0A0F1402 (rpi.lan)
   Stratum         : 3
   Ref time (UTC)  : Tue Jun 18 09:03:48 2024
   System time     : 0.000016993 seconds fast of NTP time
   Last offset     : +0.000017369 seconds
   RMS offset      : 0.000017369 seconds
   Frequency       : 11.877 ppm slow
   Residual freq   : +0.359 ppm
   Skew            : 2.391 ppm
   Root delay      : 0.029849635 seconds
   Root dispersion : 0.003227041 seconds
   Update interval : 64.3 seconds
   Leap status     : Normal

Configuring Soft Shutdown with any User Computer

Following these steps will allow the Built-in Computer to request the shutdown procedure on the User Computer or any computer you install.

If you set up your User Computer with the default 10.15.20.3 IP address and username husarion select the Default configuration tab. In case the IP address or username differs from the defaults, select Custom configuration tab.

ADVANCED CONFIGURATION

The Built-in Computer's ROS 2 driver is capable of shutting down not only one User Computer but as many as you want. It is also capable of running custom shutdown commands and much more. Refer to the panther_manager ROS 2 package documentation to see how to edit shutdown_hosts.yaml to reflect your needs.

Default configuration

The default configuration assumes the system was installed following the steps in User Computer system reinstallation.

1. From any device in Panther's network connect to the Built-in Computer via SSH:

   user@any:~$

   ssh husarion@10.15.20.2

2. Exchange SSH public keys between the Built-in Computer and the User Computer with:

   husarion@10.15.20.2:~$

   ssh-copy-id husarion@10.15.20.3

   By default, the ROS driver on the Built-in Computer will try to shutdown the User Computer at 10.15.20.3 IP address with the username husarion and the command sudo shutdown. That is why no other changes are required for it to work in the default configuration.

Custom configuration

1. Connect to your User Computer a mouse, a keyboard and a monitor. On your User Computer set a static ip to 10.15.20.XX and a netmask to 255.255.255.0. Check if your User Computer established correct connection with the RUX11 by:

   husarion@10.15.20.3:~$

   ping 10.15.20.1

   and with the Built-in computer:

   husarion@10.15.20.3:~$

   ping 10.15.20.2

2. SSH into the User Computer where XX is the IP address in step Applying DHCP Static Lease, and username is the name of the user you want to log in to:

   user@any:~$

   ssh username@10.15.20.XX

3. Allow your computer to use shutdown without providing password typing:

   CHANGE THE USERNAME

   Change the username in the command below to the one from step 1.

   username@10.15.20.XX:~$

   echo username 'ALL=(ALL) NOPASSWD: /sbin/poweroff, /sbin/reboot, /sbin/shutdown' | sudo EDITOR='tee -a' visudo

4. Exit the terminal session with the User Computer by typing exit.

5. SSH into the Built-in Computer with:

   user@any:~$

   ssh husarion@10.15.20.2

6. Exchange SSH public keys between the Built-in Computer and the User Computer. The username and IP address have to be the same as in step 1:

   husarion@10.15.20.2:~$

   ssh-copy-id username@10.15.20.XX

7. Create the shutdown_hosts.yaml file on the Built-in Computer with the command:

   husarion@10.15.20.2:~$

   nano shutdown_hosts.yaml

8. Paste the following content into the file:

   hosts:
   - ip: 10.15.20.XX
       username: username

9. Edit the IP address and username in shutdown_hosts.yaml to match those from step 1.

10. Save the file by pressing Ctrl+s, Ctrl+x.

11. Edit the Docker compose file with nano compose.yaml.

12. In the volumes section of the panther_ros Docker container add:

    volumes:
        # other volumes
        - ./shutdown_hosts.yaml:/shutdown_hosts.yaml

ROS 2

13. In the command section of the panther_ros Docker container add:

    command: >
        ros2 launch panther_bringup bringup.launch.py
        namespace:=panther
        shutdown_hosts_config_path:=/shutdown_hosts.yaml

ROS

13. In the command section of the panther_ros Docker container add:

    command: >
        roslaunch --wait
        panther_bringup bringup.launch
        exit_on_wrong_hw:=false
        shutdown_hosts_config_file:=/shutdown_hosts.yaml

14. Save the file by pressing Ctrl+s, Ctrl+x.
15. Restart Docker containers docker compose up -d --force-recreate.

After following those steps, when the Power Button is pressed sudo shutdown will be invoked on the User Computer. The Built-in Computer will wait for the User Computer until it gracefully shuts down before shutting down itself and powering off the robot.

Accessing ROS from the User Computer.

ROS 2

DDS configuration

The Panther ROS driver uses rmw_cyclonedds_cpp as the default communication middleware. For optimal quality of service, ensure that the RMW_IMPLEMENTATION environment variable is set. To do so, run the following command: export RMW_IMPLEMENTATION=rmw_cyclonedds_cpp.

Panther's ROS 2 API is described here. Make sure ROS 2 Driver is set up on the Built-in Computer and you have Internet connection. To access Panther's Driver from the User Computer you can use natively installed ROS 2 or Docker.

ROS 2 natively installed

1. To get started, please install on your User Computer ROS 2 Humble on Ubuntu 22.04.

2. To drive Panther install teleop_twist_keyboard:

   husarion@10.15.20.3:~$

   sudo apt install ros-humble-teleop-twist-keyboard

3. Reset e-stop using service call:

   husarion@10.15.20.3:~$

   ros2 service call /panther/hardware/e_stop_trigger std_srvs/srv/Trigger

4. Run teleop_twist_keyboard and drive the robot:

   husarion@10.15.20.3:~$

   ros2 run teleop_twist_keyboard teleop_twist_keyboard.py

Docker way

1. Install Docker Engine and Docker Compose on your User Computer.

2. Pull Panther image:

   husarion@10.15.20.3:~$

   docker pull ros:humble

3. Update apt:

   root@docker:/#

   apt update

4. To drive Panther install teleop_twist_keyboard:

   root@docker:/#

   apt install ros-humble-teleop-twist-keyboard

5. Reset e-stop using service call:

   root@docker:/#

   ros2 service call /panther/hardware/e_stop_trigger std_srvs/srv/Trigger

6. Run teleop_twist_keyboard and drive the robot:

   root@docker:/#

   ros2 run teleop_twist_keyboard teleop_twist_keyboard.py

ROS

ADVANCED CONFIGURATION

The Built-in Computer's ROS driver is capable of shutting down not only one User Computer but as many as you want. It is also capable of running custom shutdown commands and much more. Refer to the panther_manager ROS package documentation to see how to edit shutdown_hosts.yaml to reflect your needs.

Panther's ROS API is described here. Make sure ROS Driver is set up on the Built-in Computer and you have Internet connection. To access Panther's Driver from the User Computer you can use natively installed ROS or Docker.

ROS natively installed

1. To get started, please install on your User Computer ROS Noetic on Ubuntu 20.04.

2. To drive Panther install teleop_twist_keyboard:

   husarion@10.15.20.3:~$

   sudo apt install ros-noetic-teleop-twist-keyboard

3. Set ROS_MASTER_URI to RPi:

   husarion@10.15.20.3:~$

   export ROS_MASTER_URI=http://10.15.20.2:11311

4. Reset e-stop using service call:

   husarion@10.15.20.3:~$

   rosservice call /panther/hardware/e_stop_trigger  "{}"

5. Run teleop_twist_keyboard and drive the robot:

   husarion@10.15.20.3:~$

   rosrun teleop_twist_keyboard teleop_twist_keyboard.py _repeat_rate:=10.0

Docker way

1. Install Docker Engine and Docker Compose on your User Computer.

2. Pull Panther image:

   husarion@10.15.20.3:~$

   docker pull ros:noetic

3. Update apt:

   root@docker:/#

   apt update

4. To drive Panther install teleop_twist_keyboard:

   root@docker:/#

   apt install ros-noetic-teleop-twist-keyboard

5. Set ROS_MASTER_URI to RPi:

   root@docker:/#

   export ROS_MASTER_URI=http://10.15.20.2:11311

6. Reset e-stop using service call:

   root@docker:/#

   rosservice call /panther/hardware/e_stop_trigger  "{}"

7. Run teleop_twist_keyboard and drive the robot:

   root@docker:/#

   rosrun teleop_twist_keyboard teleop_twist_keyboard.py _repeat_rate:=10.0
